PortX Pole Hoist

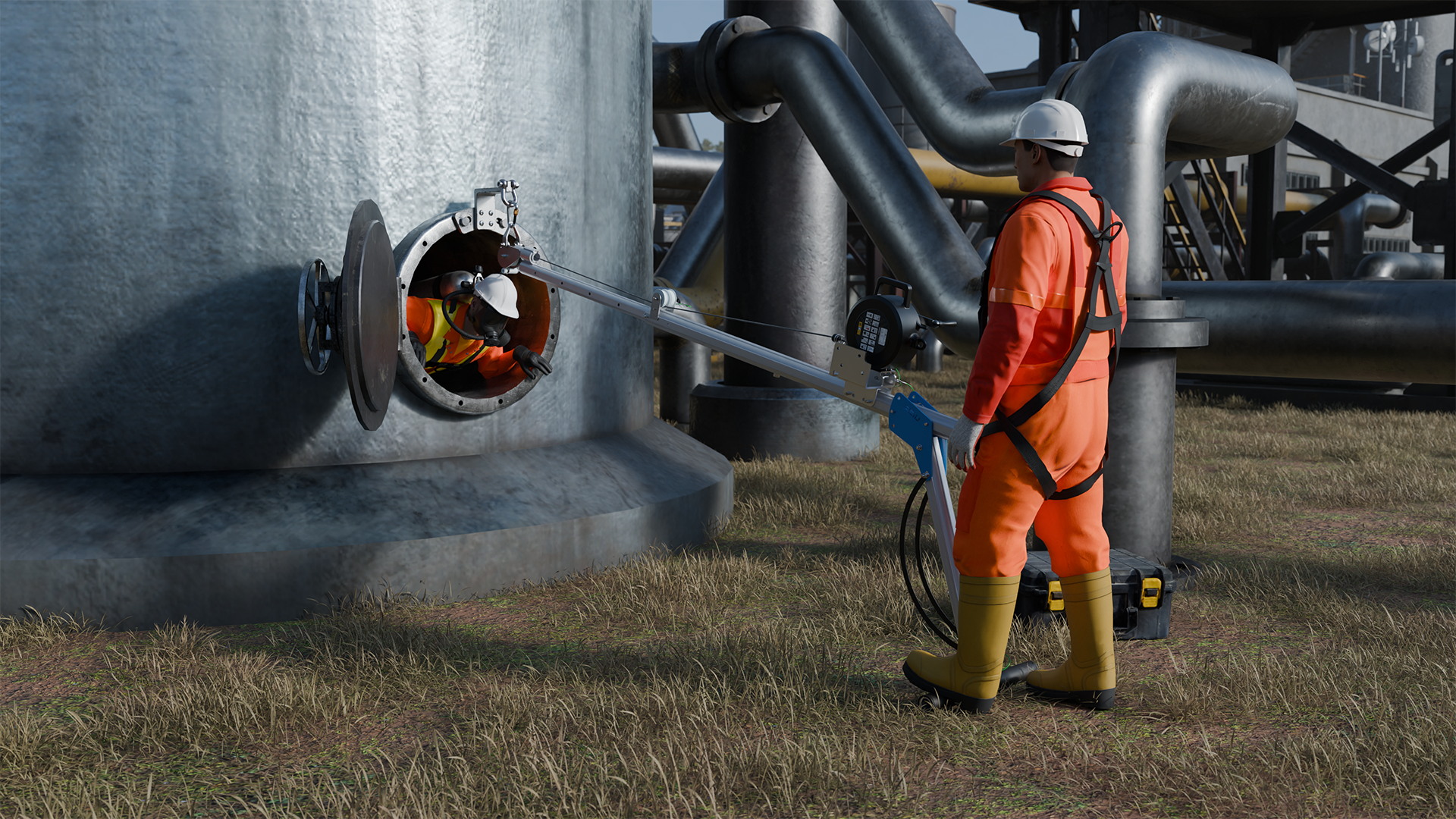

The PortX Pole Hoist has been specifically designed for confined space entry and rescue applications, delivering exceptional versatility in environments where traditional access systems may be difficult to deploy. Its innovative dual-winch design enables safe operation in both vertical and horizontal applications, with or without ladder access, allowing operators to adapt to a wide range of confined space challenges.
Conformity standards
- EN795:2012
- PD CEN /TS16415:2013

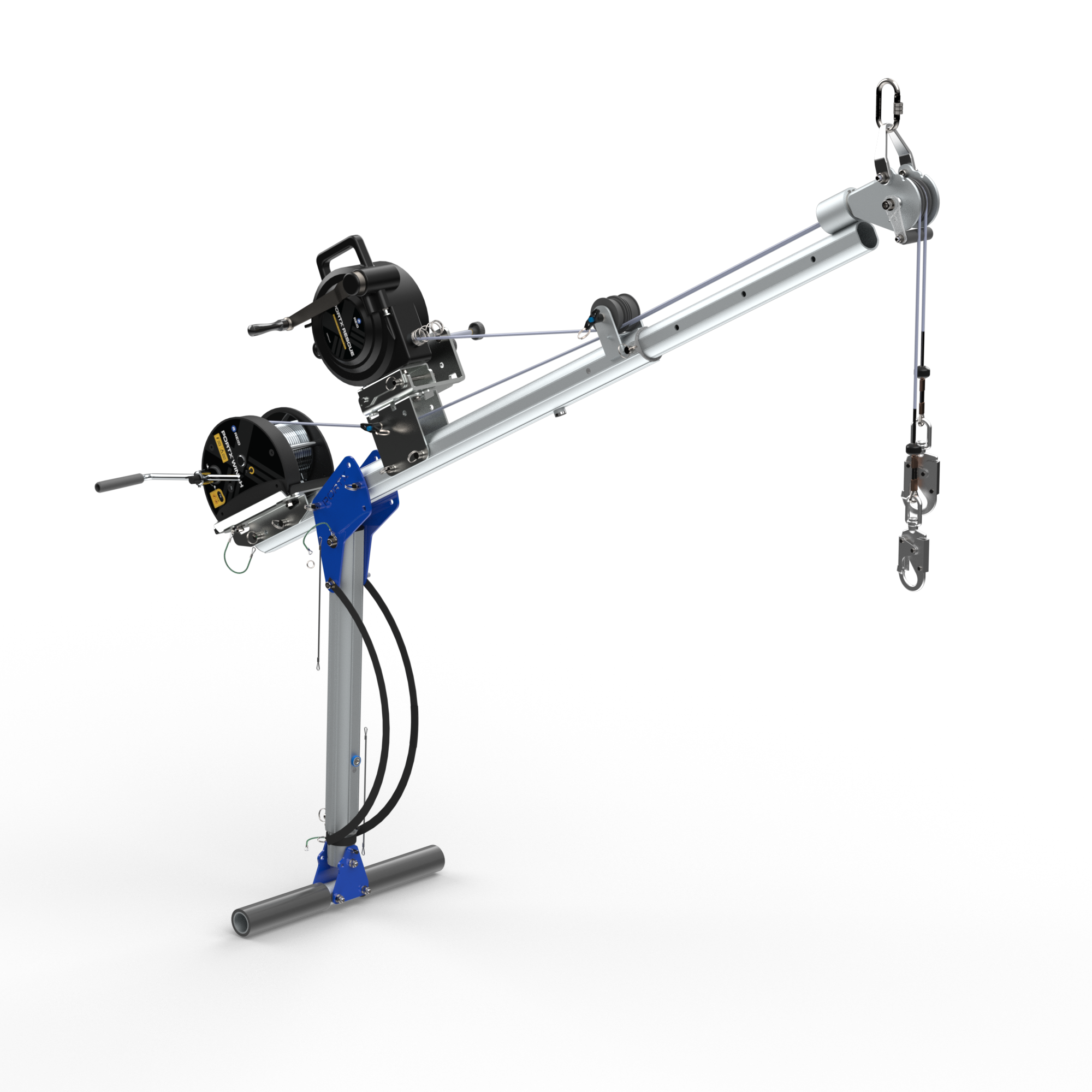

Dual-Winch Flexibility For More Access Options
Configure the PortX Pole Hoist with both a personnel winch and SRL for greater flexibility.
Dual-Winch Flexibility For More Access Options
Lightweight Strength for Demanding Environments
At just 16kg, the PortX Pole Hoist is easy to carry and deploy, while remaining robust enough for demanding day-to-day and rescue operations
Lightweight Strength for Demanding Environments
System compatibility
Combine the PortX Pole Hoist with a Porta Gantry to create a versatile overhead anchorage and offset retrieval solution.
System compatibility

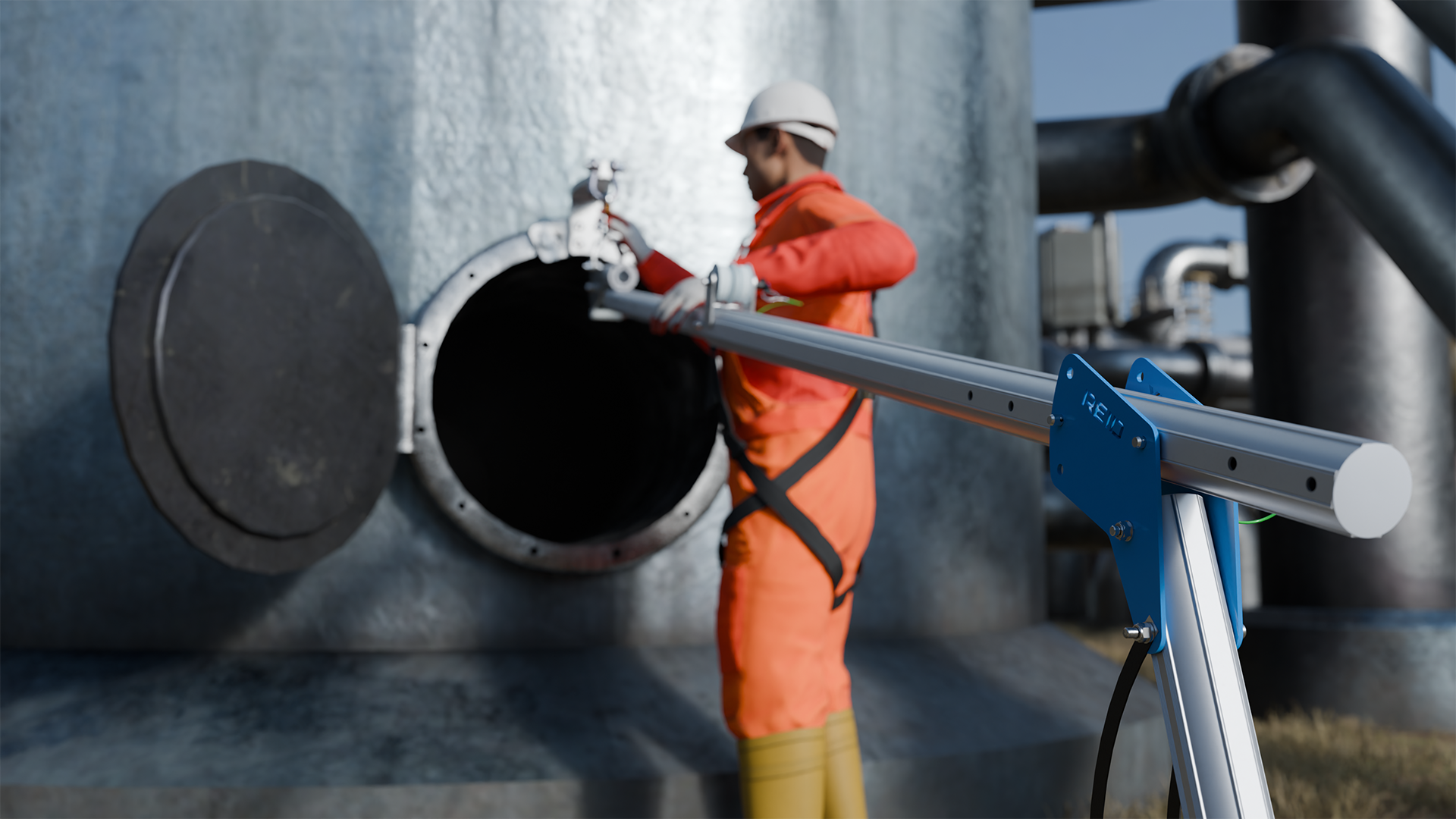

Precise positioning
The 360° rotating head allows the PortX Pole Hoist to be positioned off-centre from the entry point, providing greater flexibility in challenging environments.
Precise positioning
Confined space access points are rarely located in ideal positions. Obstructions, limited working areas, and restricted access can make it difficult to position equipment directly above the entry point.
That’s why the PortX Pole Hoist features a 360° rotating head, giving operators the flexibility to position the hoist off-centre from the access point while still maintaining safe and efficient operation.
Combined with the unit’s adjustable configuration options, the rotating head enables a wide range of setup possibilities, allowing the system to adapt to the demands of the environment rather than forcing the environment to suit the equipment. This flexibility helps operators overcome site constraints, improve positioning, and maintain productivity in even the most challenging applications.
Configured for the Challenge
Available with up to 3 m reach, adjustable height, and three base plate positions, the PortX Pole Hoist can be quickly configured to suit the application.
Configured for the Challenge
The PortX Pole Hoist has been designed to adapt to the demands of a wide range of confined space and access applications. To ensure the system can be configured for different site conditions, it is available in two versions, offering a maximum outreach of 2.1m or 3 metres.
Both models feature vertical adjustment ranging from 1m to 1.4m, allowing operators to optimise the height and positioning of the system for the task at hand. In addition, the cheek plate incorporates three adjustment positions that can be quickly configured using a single pin, enabling fast and simple setup changes on site.
This combination of reach, height adjustment, and quick configuration allows the PortX Pole Hoist to adapt to challenging environments, helping operators achieve safe and efficient access in a wider range of applications.
Integrated carry strap
The integrated carry handle strap makes transporting the PortX Pole Hoist faster, easier, and more convenient.
Integrated carry strap
Sometimes it’s the simplest features that have the biggest impact on day-to-day productivity. When designing the PortX Pole Hoist, we focused not only on performance and versatility but also on making the system as practical and easy to use as possible.
That’s why every PortX Pole Hoist includes an integrated carry handle strap, allowing operators to quickly pick up, transport, and position the unit without the need for a separate bag or carrying accessory.
