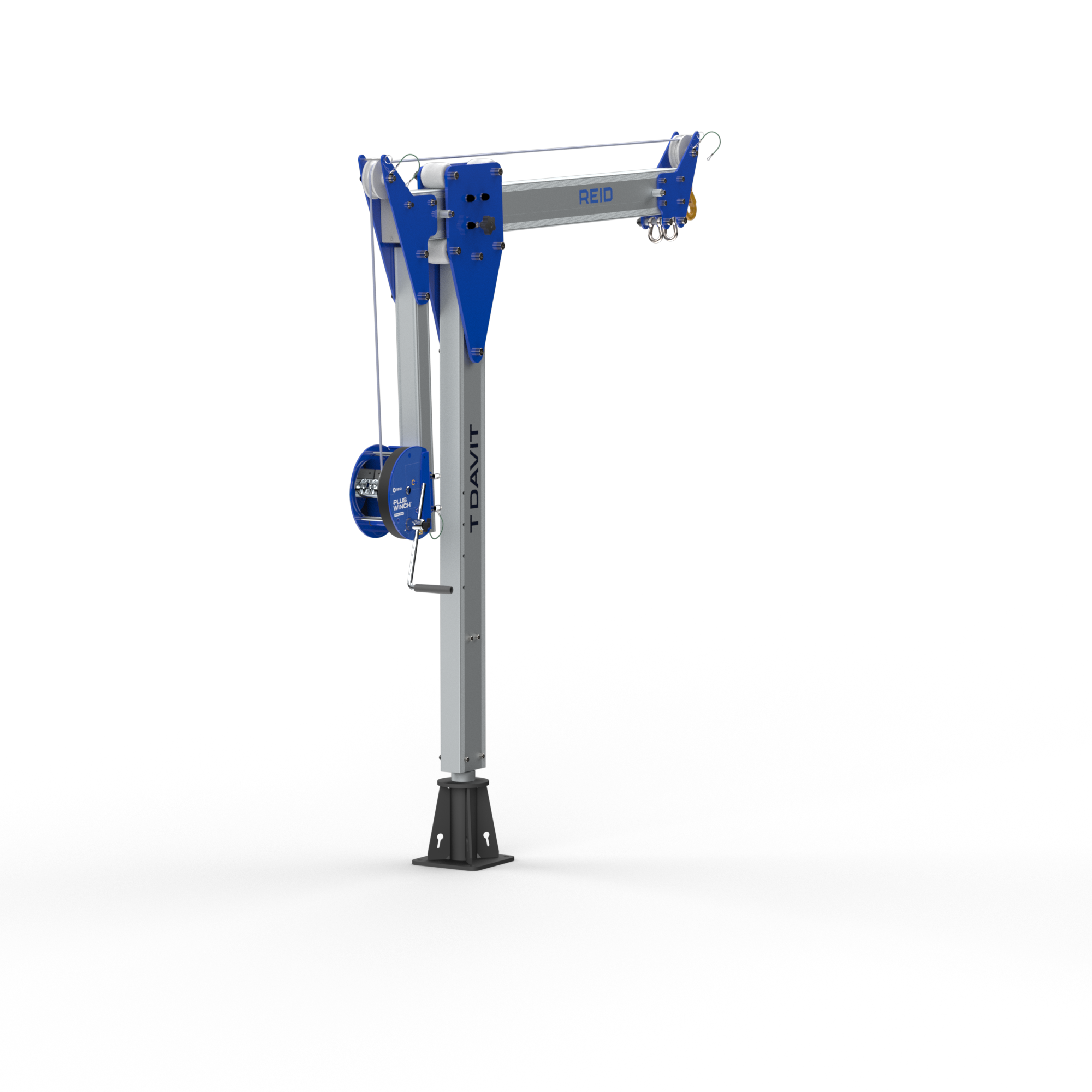

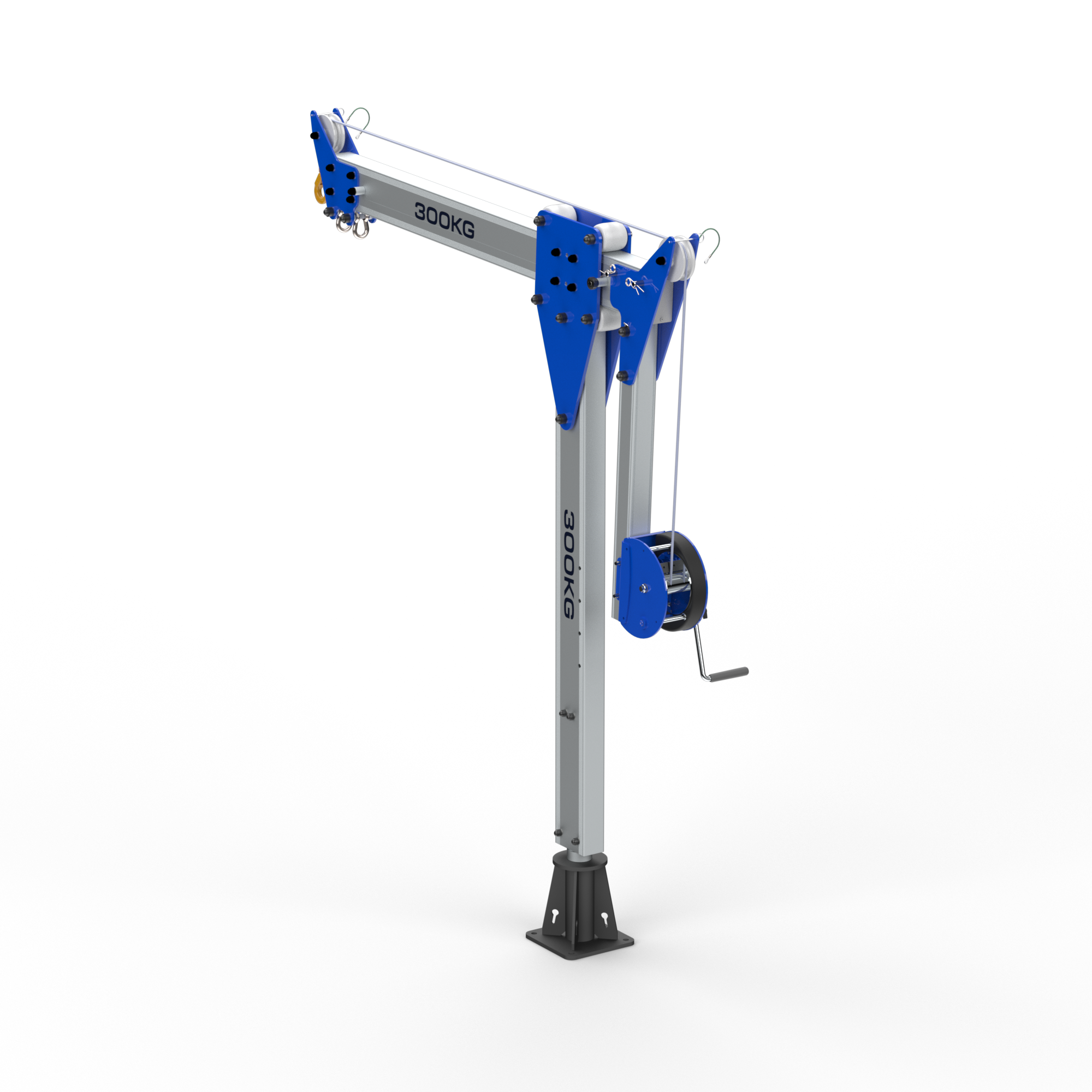

TDavit Variable Winch

The TDavit Variable Winch features an adjustable beam that can be extended or retracted through simple manual operation, enabling operators to adapt the system’s outreach to suit changing site conditions and lifting requirements. Unlike fixed-reach lifting solutions, the beam can be adjusted while under load, providing 726mm to 1526mm of horizontal movement depending on the configuration selected.

This unique capability allows loads to be positioned with greater precision without repositioning the entire davit system, helping to improve efficiency and reduce manual handling. Whether working around obstacles, reaching into confined spaces, or adjusting load placement during a lift, operators can easily alter the outreach to suit the task. For added safety and stability, the beam can also be securely locked in position during lifting operations when a fixed working radius is required.

This makes the TDavit Variable Winch particularly effective in applications where obstacles restrict the movement or rotation of the load, in areas such as water treatment kiosks, chambers, and other infrastructure assets. Operators can rotate the system into position with the beam fully retracted, extend the beam to reach the load, then retract and rotate the load back out of the restricted area. The result is a safer, more efficient lifting process with fewer setup adjustments and improved control throughout the operation.

The TDavit Variable Winch is designed around Reid’s universal 65mm kingpin, allowing the system to rotate a full 360° while carrying a load. Rather than having to repeatedly reposition the davit, operators can smoothly move loads through the required lifting path by simply rotating the system around its socket position. This not only improves control during lifting and lowering operations but also helps maintain safer handling of suspended loads throughout the task.

Combined with a variable beam length that can be adjusted manually while under load, the system enables operators to extend or retract the load position, reducing the overall footprint of the TDavit, whilst rotating.

In confined spaces, around obstacles, or in areas with restricted access, the ability to rotate under load provides greater freedom of movement while helping to minimise manual intervention. This can reduce setup adjustments, improve workflow, and allow lifting operations to be completed more quickly and effectively.

The TDavit Variable Winch is compatible with a wide range of winches including Reids Plus Winch, as well as selected third-party devices.

By supporting a variety of lifting winches, the TDavit Variable Winch can often be integrated with existing equipment, helping organisations maximise the value of their current assets while reducing the need for additional investment.

Different working heights, reach requirements, load characteristics, site layouts, and access restrictions often demand a lifting solution that can adapt without compromising safety or efficiency. The TDavit Variable Winch offers a choice of three column heights and four beam lengths to help users build a system tailored to their specific application and working environment.

This wide range of configurations provides multiple reach and height-of-lift options, allowing operators to optimise the system for confined spaces, elevated work areas, deep access points, or applications where additional outreach is required. Whether lifting in a restricted access chamber, over a handrail, or across a larger working radius, the TDavit Variable Winch can be configured to suit the task.

Every TDavit configuration also features two pin positions, allowing operators to quickly adjust the lifting geometry using the same system. This enables users to alter the working radius and height of lift to accommodate changing site conditions without requiring additional equipment. The result is a highly adaptable lifting solution that can be configured to meet a wide variety of operational needs, helping organisations maximise versatility while reducing the amount of equipment required on site.

The TDavit Variable Winch has been designed from the ground up for exceptional durability and a long service life. A key part of this design is the elimination of welded joints. This not only makes the unit lighter and easier to transport in many applications, but also removes the need for costly, time-consuming weld inspections and significantly reduces the potential for failure points to develop later in the product’s life cycle.

Built from lightweight aluminium and finished with a clean anodised coating, the TDavit Variable Winch is designed to perform reliably in demanding industrial and outdoor environments. The anodisation process increases resistance to corrosion, wear and everyday damage, helping to protect the system throughout its service life while maintaining a professional, low-maintenance finish.

This makes the TDavit Variable Winch particularly well suited to applications in water and wastewater, utilities, marine, infrastructure and industrial maintenance, where lifting equipment is regularly exposed to moisture, harsh weather and challenging site conditions.
